Norgren ISOLine Cylinders

RA/802000

Tie rod cylinders

ISOLine™ 15552 cylinder,

Double & Single acting

Cylinder diameters:

32, 40, 50, 63, 80, 100, 125,160,

200, 250, 320 mm

Standard strokes:

25, 50, 80, 100, 125, 160, 200,

250, 320,400, 500 mm

Variant actuators & mounting

available

Data Sheet

PRA/802000

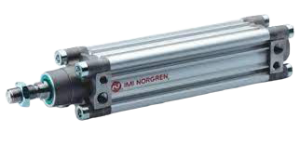

Profile cylinders

ISOLine™ 15552 cylinder,

Double & Single acting

Cylinder diameters:

32, 40, 50, 63, 80, 100, 125,160,

200, 250, 320 mm

Standard strokes:

25, 50, 80, 100, 125, 160, 200,

250, 320,400, 500 mm

Variant actuators & mounting

available

Data Sheet

KA/802000/M

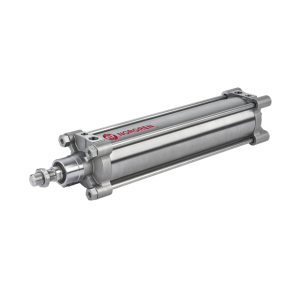

Stainless Steel cylinders

ISOLine™ 15552 cylinder,

Double acting

Cylinder diameters:

32, 40, 50, 63, 80, 100, 125,160,

200 mm

Standard strokes:

25, 50, 80, 100, 125, 160, 200,

250, 320,400, 500 mm

Variant actuators & mounting

available

Data Sheet

Cylinder Mounting

Various Front & Rear Mountings

Data Sheet

M/50/LSU,

M/50/RAC,TM/50/RAU

Magnetically operated

switches

Switching voltage (Ub) :

10 … 240 V a.c./170 V d.c.

Protection rating (EN 60529) : IP66

Cable length : 2, 5 or 10 m

Electromagnetic compatibility

according to : EN 60947-5-2

Data Sheet
